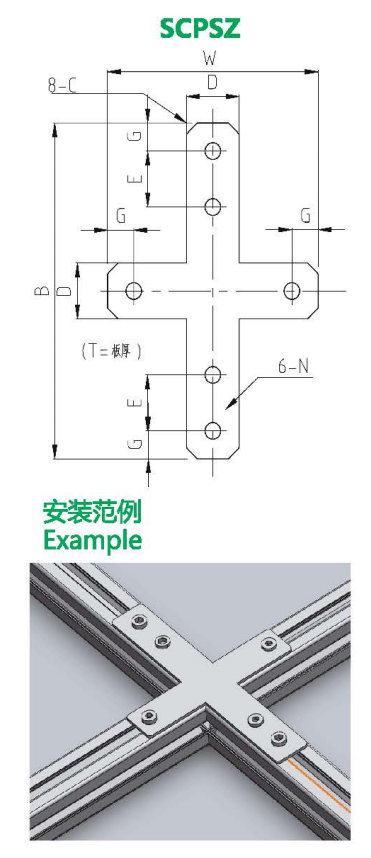

产品名称:型材连接板SCPSZ      点击次数:1144      发布日期:2020-09-12
产品详情

材质:SPHC钢

Marterial:SPHC Steel


用途:用于铝型材与铝型材各种角度的连接与连接的加强,可根据设计需要的规格来图来样加工。


表面处理:环保镀锌

Surface Finish:Rosh Zincification


环保要求:RoHS对应品

规格Specifications

型号
Item
适用型材
Vs Profile
W B E G T C D F N R A 适用螺栓·螺母
Vs Bolt & Nut
螺栓
Bolt
个数
Pcs
螺母
Nut
个数
Pcs
SCPSJ-6 20系列
20Series
130 96 18 8 2.3 3 18 5.5 M5×8 4 M5 4
SCPSJ-8 30系列
30Series
200 146 28 13 3.2 3 28 6.5 M6×10 4 M6 4
SCPSJ-10 40系列
40Series
270 200 38 18 4.5 5 38 9 M8×15 4 M8 4
SCPSL-6 20系列
20Series
36 20 2.3 18 5.5 1.5 M5×8 2 M5 2
SCPSL-8 30系列
30Series
56 30 3.2 26 6.5 2 M6×10 2 M6 2
SCPSL-10 40系列
40Series
76 40 3.2 36 9 2 M8×15 2 M8 2
SCPLL-6 20系列
20Series
78 20 2.3 18 5.5 1.5 M5×8 4 M5 4
SCPLL-8 30系列
30Series
116 30 3.2 26 6.5 2 M6×10 4 M6 4
SCPLL-10 40系列
40Series
156 40 3.2 36 9 2 M8×15 4 M8 4
SCPFW-6 20系列
20Series
36 20 2.3 5.5 1.5 M5×8 4 M5 4
SCPFW-8 30系列
30Series
56 30 3.2 6.5 2 M6×10 4 M6 4
SCPFW-10 40系列
40Series
76 40 3.2 9 2 M8×15 4 M8 4
SCPSZ-6 20系列
20Series
80 120 20 10 3.2 3 18 5.5 M5×8 6 M5 6
SCPSZ-8 30系列
30Series
90 140 30 10 3.2 5 28 6.5 M6×10 6 M6 6
SCPSZ-10 40系列
40Series
100 150 35 10 3.2 5 38 9 M8×15 6 M8 6
SCPTT-6 20系列
20Series
80 80 20 10 3.2 3 18 5.5 M5×8 4 M5 4
SCPTT-8 30系列
30Series
90 85 30 10 3.2 5 28 6.5 M6×10 4 M6 4
SCPTT-10 40系列
40Series
100 90 35 10 3.2 5 38 9 M8×15 4 M8 4
SCPZJ-6 20系列
20Series
80 20 10 3.2 3 18 5.5 M5×8 4 M5 4
SCPZJ-8 30系列
30Series
85 30 10 3.2 5 28 6.5 M6×10 4 M6 4
SCPZJ-10 40系列
40Series
95 35 10 3.2 5 38 9 M8×15 4 M8 4
SCPCA-6 20系列
20Series
18 16 2.3 20 5 5.5 1.5 11 M5×8 2 M5 2
SCPCA-8 30系列
30Series
26 20 3.2 30 5.5 6.5 2 15 M6×10 2 M6 2
SCPCA-10 40系列
40Series
36 26 4.5 40 6 9 2 20 M8×15 2 M8 2
SCPCB-6 20系列
20Series
36 16 20 2.3 20 5 5.5 1.5 11 M5×8 4 M5 4
SCPCB-8 30系列
30Series
56 20 30 3.2 30 5.5 6.5 2 15 M6×10 4 M6 4
SCPCB-10 40系列
40Series
76 26 40 4.5 40 6 9 2 20 M8×15 4 M8 4
SCPCC-6 20系列
20Series
36 20 15 3.2 40 6 5.5 1.5 11 M5×8 8 M5 8
SCPCC-8 30系列
30Series
56 30 26 4.5 60 6.5 6.5 2 15 M6×10 8 M6 8
SCPCC-10 40系列
40Series
76 40 32 6 80 9 9 2 20 M8×15 8 M8 8
